Renderings from Particular Perspectives

The following are some of the renderings I included to show particular perspectives within the bridge. Entourage were included in the final presentation.

ABOVE: URBAN AGRI CENTER

ABOVE: DOCK/BOAT LAUNCH

ABOVE: OUTDOOR THEATER TOP LEVEL

ABOVE: EDUCATIONAL CENTER SECOND FLOOR

ABOVE: CAFE WITH SOLAR SCREEN ABOVE

Image of my Presentation Final

Below are some of the images I included in my site identity. The colored site analysis shows the location of the building programs as well as their relevance to the river, nearby bridges, and two cities.

Below are some renderings I created to give a better sense of the bridge.

TOP PLAN ABOVE

BOTTOM PLAN ABOVE

EAST SECTION VIEW

WEST SECTION VIEW (actual landscape in background)

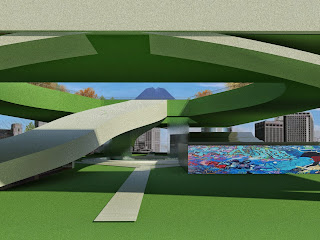

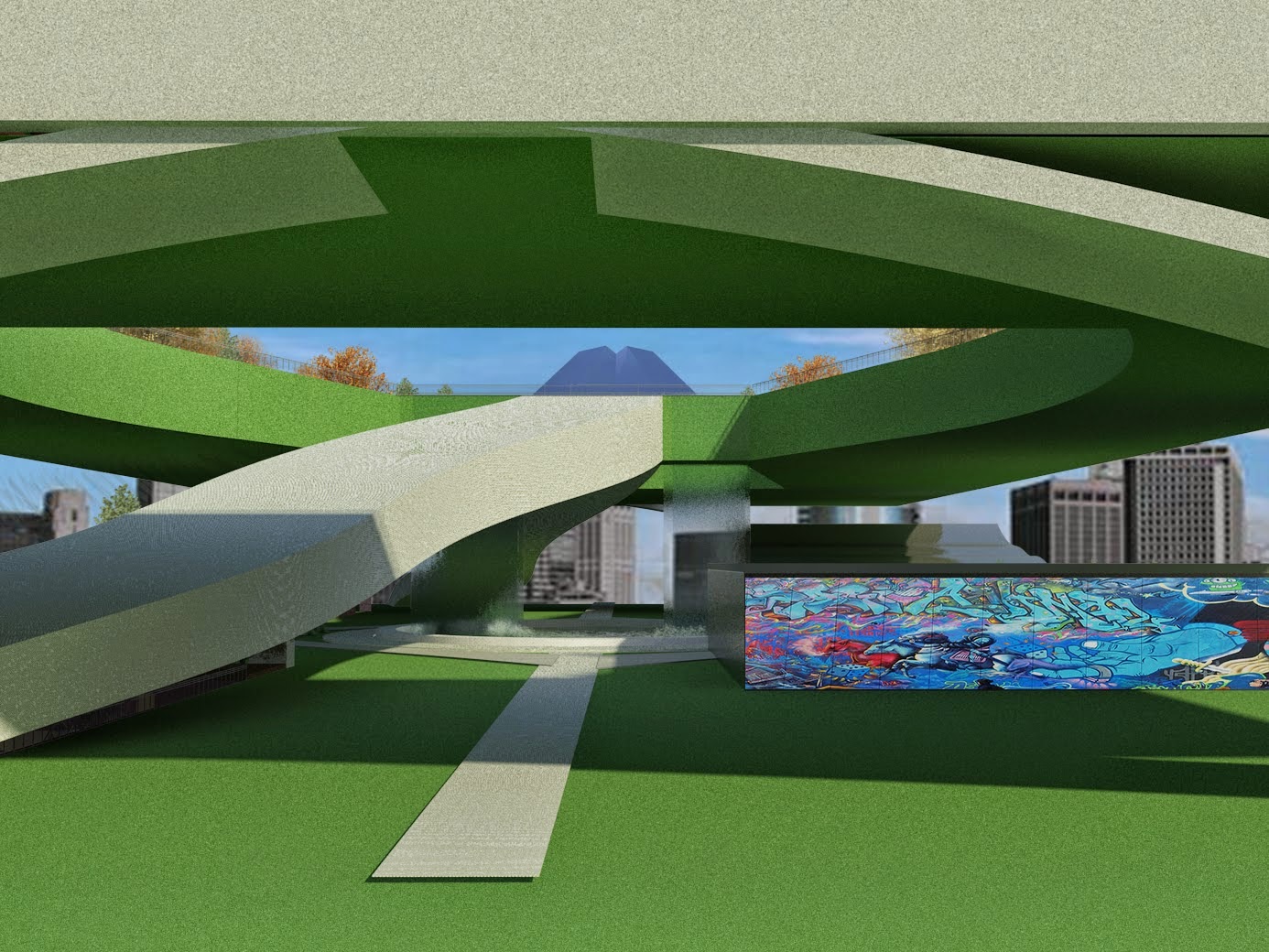

View down the pathway from one side of bridge on first level. Here you can see the graffiti wall, the ramp that leads through a large overlook opening, and the waterfall in the center, as well as the scenery of the city in the distance.

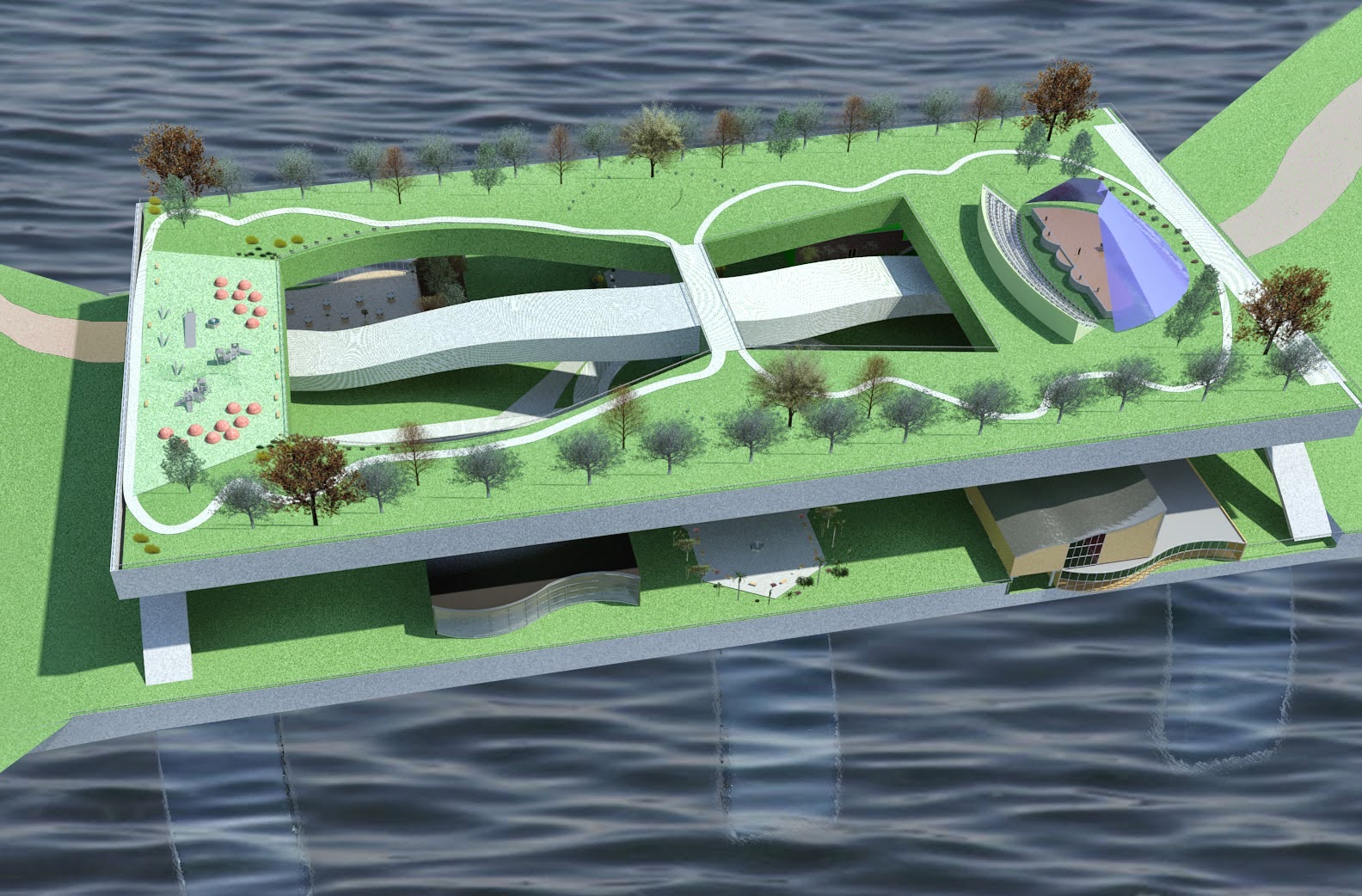

Actual Bridge Design

My idea of my bridge was to stay simple and focus on geometric shapes.
This was a suggestion for my last project, and I felt it fit well with this project.

One of the goals of this competition was to link the two communities across the river, and what better way than to communicate with a common geometric shape and the basic languages of music, art, and nature. Everyone, regardless of their background, can assimilate into this community and appreciate the beauty within. The design is meant to stay simple in order to focus on the surrounding programs I developed as an architect, and the programs and beauty reinforced and created by the users as well.

I also wanted to focus on making it easily accessible for everyone regardless of their physical abilities. There is a ramp that connects the two levels, both of which are rectangular. The winding paths connect to a widened grass level that connects back to the land on either side of the river. Simultaneous arches hold the second level up, as well as similar arches which act as the entire bridge supports. In the center, where the ramps meet and give access to the second level, holds a large waterfall and fountain. The water falls on either side of the ramp down to the large pool below, which sits right at the center of the first level.

The first level focuses on the arts and learning. The mirrored windowed buildings submerged in the bridge (education center and cafe) are located on opposite ends, and the other buildings are symmetric to each other. Walking paths walk right down the center and surround the pool. They offer a path to a plaza on either side of the pool. One plaza has tropical plant life, the "Tropical Plaza" while the other has deciduous and coniferous plants, the "Forest Plaza".

The second level only has the outdoor theater and the playground, reinforcing more laidback play and enjoyment. This focuses mainly on the ability to enjoy the surroundings and enjoy the view of the city from the top of the bridge.

The entire bridge is lined with railings and the materials reinforce the natural life of the bridge. Brick, cobblestone, marble, cement, plenty of grass space and the occasional turf for the playground. There is also plenty of water that mirrors the water below the bridge.

Catching Up

These past few weeks have been hard to keep track of.

In review of the progress I made:

1. I have designed and created each of the desired buildings, which include an Urban Agriculture Center, Outdoor Theater, Cafe, Dock/Boat Launch, Educational Center, and Playground.
1. The Urban Agriculture Center is a building that is built of multiple levels. The levels decrease in width as they increase in height, but the roofs of the below layers are then green spaces that are filled with natural life for people to walk around and enjoy the nature. There is also an opportunity to experience agriculture within the building as there are more plantlife to learn from and enjoy. The upper roof has a nice view of the river and city with a fountain in the center. Beside the Center is an interactive center where people can create their own plant and hang from a line in order to add to the beauty of the facility. Wind powered towers are located nearby.
2. The Outdoor Theater is a simpler place, that encourages more lax performances. There is a green sloped upper level that overlooks all of the seats below, and the stage is surrounded by a somewhat transparent overhang canopy, but in the light, spectators are still able to see beyond the stage. At night, with the lights above, the focus would be on the performers onstage.
3. The Cafe is also very open, with no real roof. The cafe is meant to have a regular food station, a vegetarian station and a vegan station. The bathrooms are located in this building as well. There is a covered stairwell that leads down to the dock below the bridge. The cafe is somewhat submerged in the bridge, and has a large curving window that allows a beautiful view for all the patrons within the eating establishment. Above the cafe is the solar screen I developed in Grasshopper, translated over to a beautiful solar screen above the space.
4. The Dock is a large space enclosed in brick windowed walls, allowing for different size boats and canoes to dock for a brief period of time. The stairwell leads directly to the cafe above.
5. The Educational Center focused on music and performance. The design is literally similarly shaped to a piano, and mirrors the cafe in its submergence in the bridge. It has the same curving window that permits a great view from the first level. The second level is more individual performance based with an acting room and a piano/musical room, both catered with their materials (padding/sound proof).
6. The playground includes both your expected pieces and some random shapes located in spaces that allow creativity with use. It is similar to the design of the playground in the winning design of the competition.
2. I also included my indoor theater from Assignment 3, in order to promote the arts more in a more specific way. In order to translate to the space, I made the outer walls graffiti/artistic walls, where passersby could share their artistic expression and add to the beauty of the space.
3. Throughout the bridge, all the walls are green walls or art walls, and the empty spaces are filled with plantlife, art pieces, or sitting centers around fountains or sculptures.

Thoughts on the Final Project

1. I am unfamiliar with what an Urban Agriculture Center is, but upon research I have gathered it a building that promotes green design and agriculture in general. I have developed a building that allows for vertical farming and for people to walk through and grasp a better idea of urbanized agriculture. They can learn through interaction how to be a part of sustainability, and they can even contribute and build their own plant to contribute to the attraction.
2. I want to make the place accessible for disabled patrons, and thus I think I will made a gradual ramp as opposed to a set of stairs to maneuver the pathway. This will extend the trip, but the design can work with this.

For designing this project, I am using Rhino to develop the landscape and bridge. I am using Revit to construct the individual buildings, and making some of them similar in design. While the attraction of the bridge is its multiple programs, the individual architecture should promote the focus on the landscape and the goal of Green Urban Design.

I will use Photoshop to create a more understanding environment to get my thoughts across.

Final Project

This final project involves a lot of creativity and time.

For the Bridge project, my ideas involve creating a two level bridge.

• The first level will be the interactive section, which will have a huge focus on urban agriculture and environmentally friendly development.
• My Urban Agriculture Center, an Educational Center, and a Vegan Cafe will all be located on the first level. Some of these structure will be placed within the bridge, at a lower level.
• This forms different levels on one level, and will bring people closer to the water. I will provide a vantage viewing point of the river below, and make visitors appreciate the beauty.
• I will create a second tier that holds the theater and playground.
• The theater on the second level will be an outdoor amphitheater that is surrounded in green landscape, furthering the promotion of a green design.
• I will place my theater from Assignment 2 on the first tier to also incorporate entertainment, yet it will still have this advantage of a beautiful viewing spot from the front room, overlooking the river.
• All blank walls will either be transformed into green walls OR into walls that embrace graffiti. Vandalism won't be encouraged, yet we will promote independent creativity and artistic tendencies. They will either be chalkboard walls or walls that will provide as a canvas for both professional and beginner artists alike.
• Waterfalls will be placed beneath the pathway that brings visitors up to the second level.
• A long path that can be used for walking or bicycle use will take visitors from one side of the river to the other, winding through the buildings and attractions around the bridge.
• Cars will not be permitted on the bridge.
• A dock will be accessed from one of the buildings located within the bridge, likely the cafe.

Exploration of Theater Materials

This image shows the theater exploded as to provide an idea of the materials used and where they are included. The following materials are included:

Linoleum Front Entrance

Carpeted Floors on Levels

Carpeted Stairs

Wooden Floor around Stage

Carpeted Walls

Wooden Center Wall

Masonry and Steel Walls

Steel Louvers

Glass Window

Acoustic Ceiling Tile
